400G VR4 OSFP 850nm 100M MPO MMF

Categories , Tags , ,

Product Highlights

  • Built-in Inphi DSP Chip, Max. Power Consumption 8W
  • Tested in Targeted Switches for Superior Performance, Quality, and Reliability
  • Up to 106.25Gbps Data Rate Per Channel by PAM4 Modulation
  • Compliant with OSFP MSA, CMIS, OIF-CEI-112G-VSR-PAM4
  • Hot-pluggable Flat Top OSFP Form Factor
  • High-speed Electrical Compliant to IEEE 802.3ck
  • Interoperable with other IEEE-compliant 400GBASE Interfactes where Applicable
  • Class 1 Laser Safety
Ask for a quote
Download datasheet

Product Details:

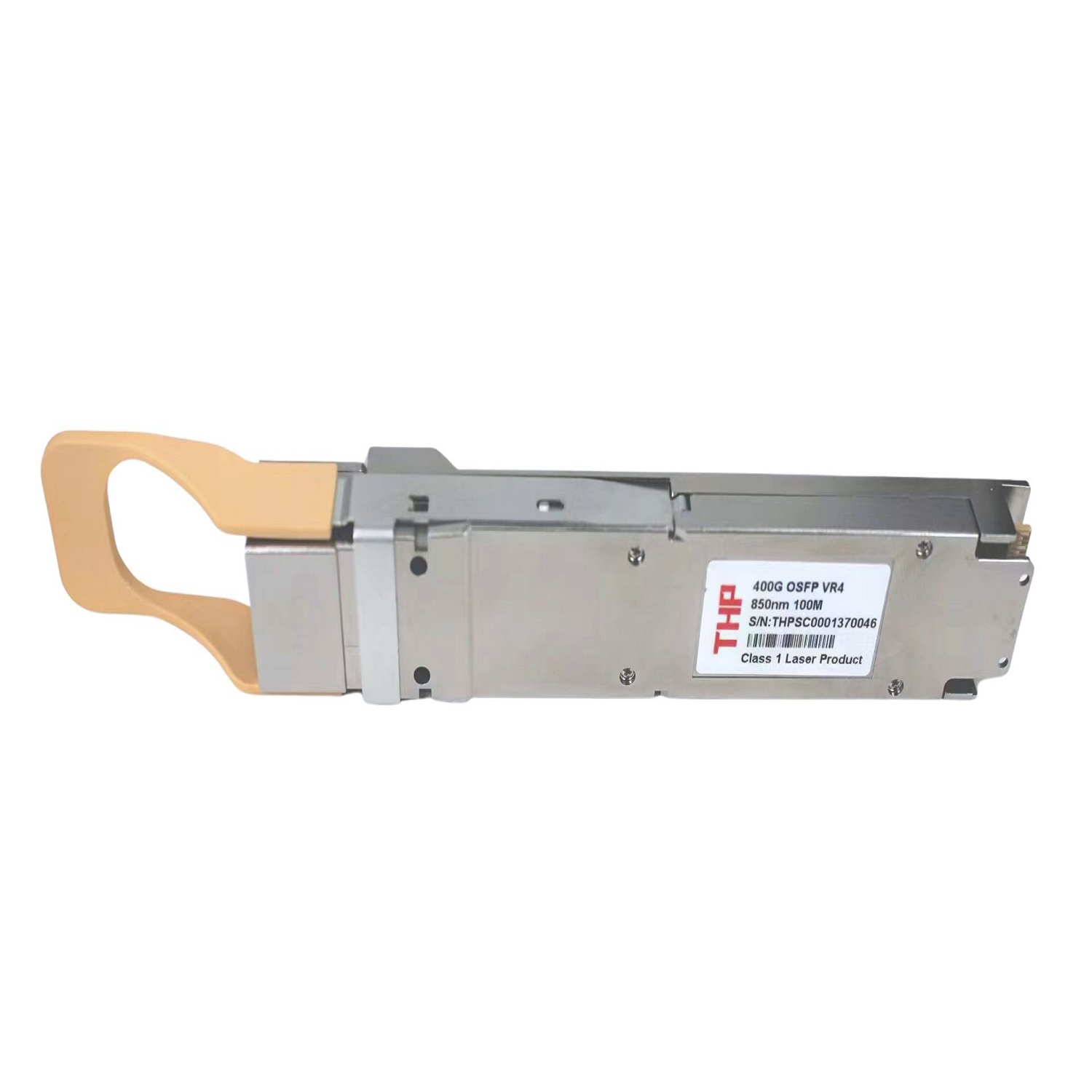

400GBASE-VR4 OSFP module, MTP/MPO-12 connector, up to 100m over parallel OM4 multi-mode fiber. It is compliant with OSFP MSA, IEEE 802.3ck protocol and OIF-CEI-112G-VSR-PAM4 standards. The built-in digital diagnostics monitoring (DDM) allows access to real-time operating parameters. It is suitable for 400G Ethernet and Infiniband. It also support 400G to 400G point to point connection.

Specifications：

Additional information

Data Rate

400G
Form Factor

OSFP
Model

VR4
Wavelength

850NM
Reach

100M
Connector

MPO-12
Media

MMF
TX

VCSEL
RX

PIN
Temperature

C Temp
